Python Selection for Simulation

The Python selection option allows the user to choose any Python version and add it to PyAMS.

To do this:

  1. Copy the desired Python interpreter into the Python folder inside PyAMS (see figure1).

  2. Open PyAMS and select the Python version you want to use for electronic circuit analysis (see figure2).

_images/python_01.png

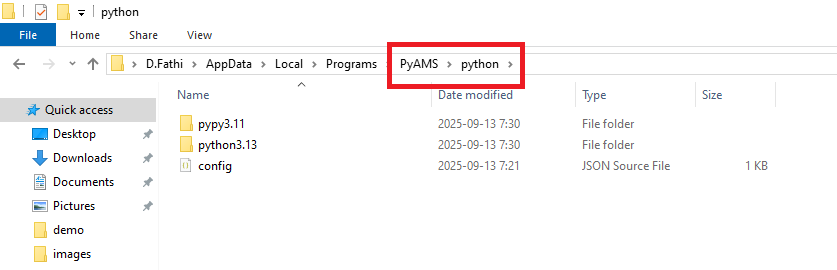

Fig. 1 Copy the desired Python interpreter into the Python folder inside PyAMS

_images/python_02.png

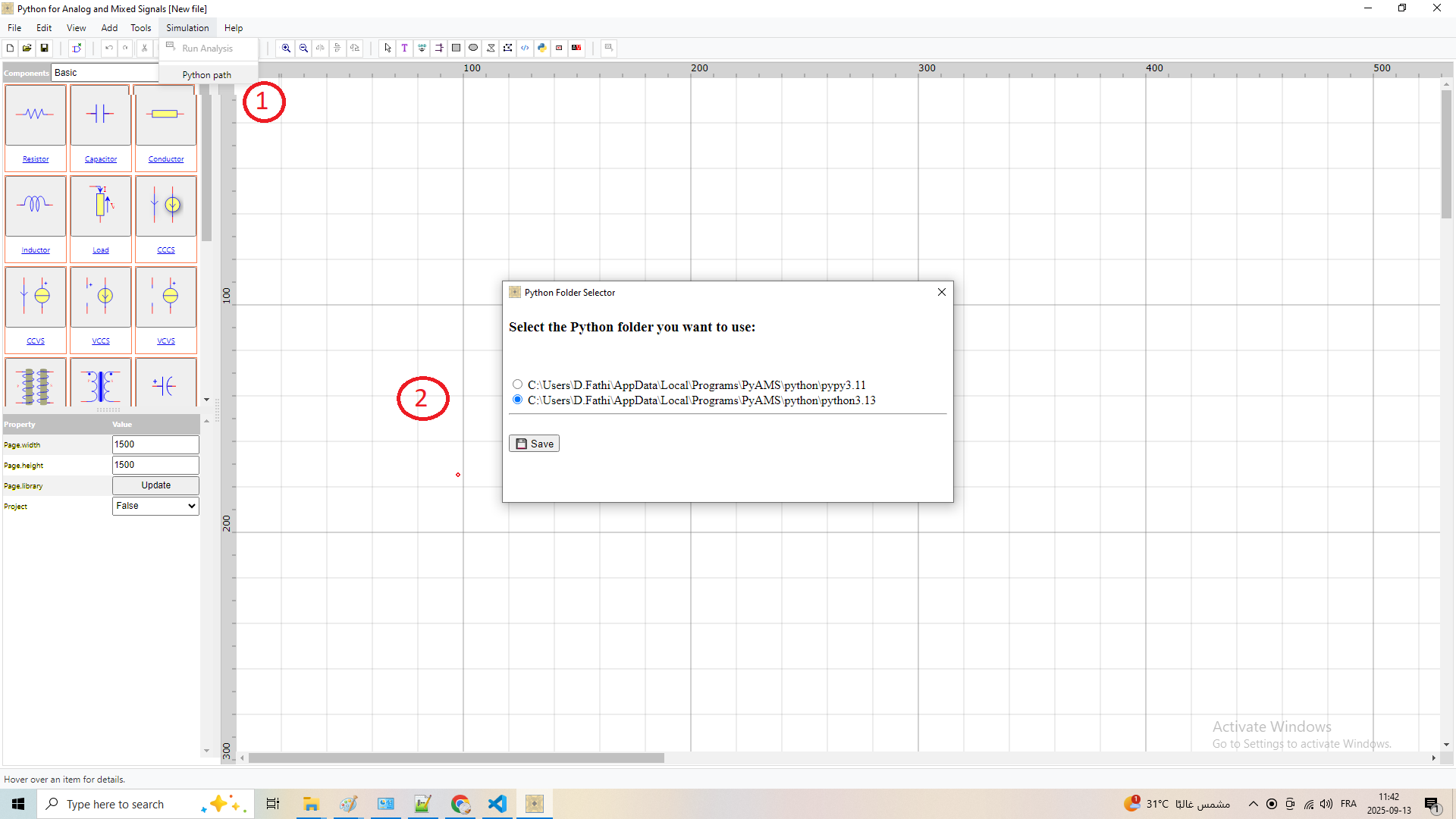

Fig. 2 Select the Python version you want to use for electronic circuit analysis

Note

This flexibility makes it possible to work with different Python versions depending on the packages or features you need.
