Square Voltage

Symbol

Information

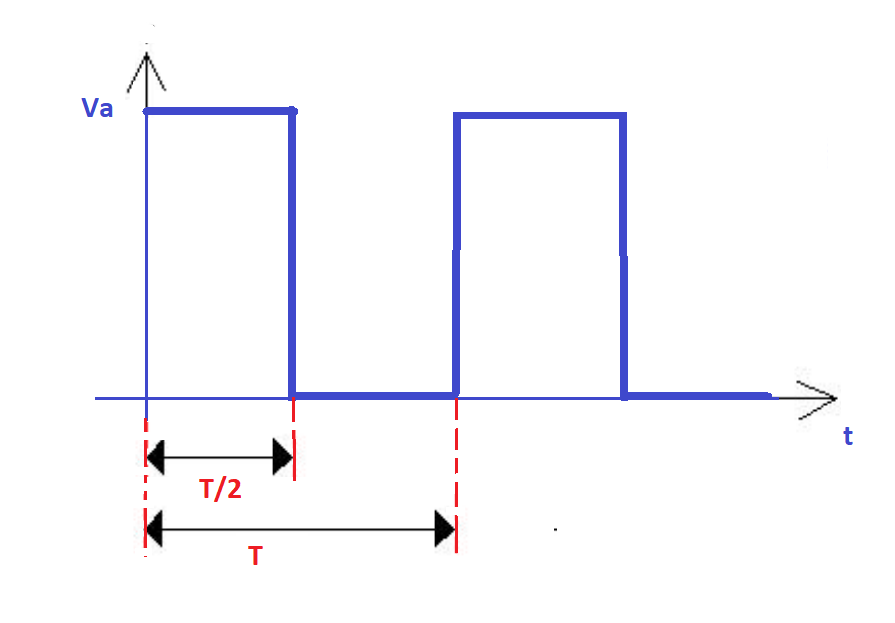

A Square Wave Voltage Source generates a periodic alternating voltage signal based on the following equation:

\[\begin{split}V(t) = \begin{cases} V_a + V_{off}, & 0 \leq t < T/2 \\ V_{off}, & T/2 \leq t < T \end{cases}\end{split}\]

Where:

• \(V(t)\) is the output voltage at time \(t\)

• \(V_a\) is the amplitude of the square wave voltage (Volts)

• \(V_{off}\) is the offset voltage (Volts)

• \(T\) is the period of the waveform (Seconds)

Ports

• p: Positive terminal

• n: Negative terminal

Model

The SquareVoltage model generates a square wave voltage signal.

This model is useful for clock signals, switching circuits, and modulation applications.

Attributes:

• V (signal): Output voltage across terminals (p, n).

• Va (param): Amplitude of the square wave voltage, default is 1 V.

• T (param): Period of the waveform, default is 0.1 sec.

• Voff (param): Offset voltage, default is 0 V.

Methods:

analog(): Implements the square wave voltage output equation.

\[\begin{split}V = \begin{cases} V_a + V_{off}, & \text{when wave is HIGH} \\ V_{off}, & \text{when wave is LOW} \end{cases}\end{split}\]

from pyams.lib import model, signal, param, time
from pyams.lib import voltage

class SquareVoltage(model):
    """
    Square Wave Voltage Source Model.
    """

    def __init__(self, p, n):
        # Signal declaration
        self.V = signal('out', voltage, p, n)

        # Parameter declarations
        self.Va = param(1.0, 'V', 'Amplitude of square wave voltage')
        self.T = param(0.1, 'Sec', 'Period')
        self.Voff = param(0.0, 'V', 'Offset voltage')

    def analog(self):
        """Defines the square wave voltage equation."""
        t = time.value  # Get the current simulation time
        cycle_time = t % self.T  # Time within the current period

        if cycle_time < (self.T / 2):
            self.V += self.Va + self.Voff  # High state
        else:
            self.V += self.Voff  # Low state

Command syntax

The syntax for defining a square wave voltage source in a PyAMS simulation:

# Import the model
from pyams.models import SquareVoltage

# Vname: is the name of the voltage source instance
# p, n: The connection points in the circuit
Vname = SquareVoltage(p, n)
