NPN Transistor

Symbol

../../../_images/NPN.svg

Information

../../../_images/NPN.png

An NPN bipolar junction transistor (BJT) is a three-terminal semiconductor device used for amplification and switching applications. It consists of three regions:

  • Collector (c)

  • Base (b)

  • Emitter (e)

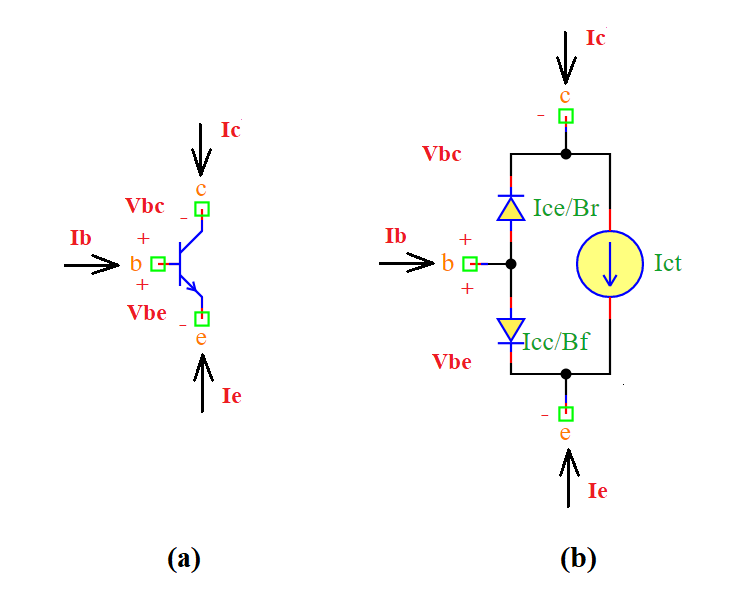

The behavior of the transistor follows the Ebers-Moll model, which describes its current-voltage relationships:

\[ \begin{align}\begin{aligned}I_{cc} = I_s \cdot \left( e^{\frac{V_{be}}{N_f V_t}} - 1 \right)\\I_{ce} = I_s \cdot \left( e^{\frac{V_{bc}}{N_r V_t}} - 1 \right)\\I_{ct} = (I_{cc} - I_{ce}) \cdot \left(1 - \frac{V_{bc}}{V_{af}} - \frac{V_{be}}{V_{ar}} \right)\\I_c = I_{ct} - \frac{I_{ce}}{B_r} + g_{min} V_{bc}\\I_b = \frac{I_{ce}}{B_r} + \frac{I_{cc}}{B_f}\\I_e = -I_{ct} - \frac{I_{cc}}{B_f} + g_{min} V_{be}\end{aligned}\end{align} \]

Where:

  • \(I_c\), \(I_b\), \(I_e\) are the collector, base, and emitter currents, respectively.

  • \(V_{be}\) and \(V_{bc}\) are the base-emitter and base-collector voltages, respectively.

  • \(I_s\) is the transport saturation current.

  • \(V_t\) is the thermal voltage, depending on temperature.

  • \(N_f\) and \(N_r\) are the forward and reverse current emission coefficients.

  • \(B_f\) and \(B_r\) are the ideal maximum forward and reverse beta values.

  • \(V_{af}\) and \(V_{ar}\) are the forward and reverse Early voltages.

  • \(g_{min}\) is the minimum conductance.

NPN transistors are widely used in analog and digital circuits, amplifiers, and switching applications.

Ports

  • c: Collector (output terminal)

  • b: Base (control terminal)

  • e: Emitter (input terminal)

Model

The NPN Transistor model implements a nonlinear behavior using the Ebers-Moll equation.

The transistor operates by controlling the current flow between the collector and emitter, based on the base-emitter voltage.

Attributes:

  • Vbe (signal): Base-emitter voltage.

  • Vbc (signal): Base-collector voltage.

  • Vce (signal): Collector-emitter voltage.

  • Ic (signal): Collector current.

  • Ib (signal): Base current.

  • Ie (signal): Emitter current.

  • Nf (param): Forward current emission coefficient (default: 1.0).

  • Nr (param): Reverse current emission coefficient (default: 1.0).

  • Is (param): Transport saturation current (default: 1.0e-16 A).

  • area (param): Device area scaling factor (default: 1.0).

  • Br (param): Ideal maximum reverse beta (default: 1.0).

  • Bf (param): Ideal maximum forward beta (default: 100.0).

  • Vt (param): Thermal voltage (default: 0.025 V).

  • Var (param): Reverse Early voltage (default: 1e3 V).

  • Vaf (param): Forward Early voltage (default: 1e3 V).

  • gmin (param): Minimum conductance (default: 1e-12 1/Ohm).

Methods:

analog(): Defines the transistor behavior using the Ebers-Moll model:

from pyams.lib import model, signal, param, voltage, current, explim

class NPN(model):
    """
    NPN Bipolar Junction Transistor (BJT) model based on the Ebers-Moll equation.
    """
    def __init__(self, c, b, e):
        # Signal declaration
        self.Vbe = signal('in', voltage, b, e)
        self.Vbc = signal('in', voltage, b, c)
        self.Vce = signal('in', voltage, c, e)
        self.Ic = signal('out', current, c)
        self.Ib = signal('out', current, b)
        self.Ie = signal('out', current, e)

        # Parameter declaration
        self.Nf = param(1.0, ' ', 'Forward current emission coefficient')
        self.Nr = param(1.0, ' ', 'Reverse current emission coefficient')
        self.Is = param(1.0e-16, 'A', 'Transport saturation current')
        self.area = param(1.0, ' ', 'Area')
        self.Br = param(1.0, ' ', 'Ideal maximum reverse beta')
        self.Bf = param(100.0, ' ', 'Ideal maximum forward beta')
        self.Vt = param(0.025, 'V', 'Voltage equivalent of temperature')
        self.Var = param(1e+3, 'V', 'Reverse Early voltage')
        self.Vaf = param(1e+3, 'V', 'Forward Early voltage')
        self.gmin = param(1e-12, '1/Ohm', 'Minimum conductance')

    def analog(self):
        """Defines the transistor’s current-voltage relationships"""
        Vt = self.Vt
        Icc = self.Is * (explim(self.Vbe / (self.Nf * Vt)) - 1)
        Ice = self.Is * (explim(self.Vbc / (self.Nr * Vt)) - 1)
        Ict = (Icc - Ice) * (1 - self.Vbc / self.Vaf - self.Vbe / self.Var)
        self.Ic += Ict - Ice / self.Br + self.gmin * self.Vbc
        self.Ib += Ice / self.Br + Icc / self.Bf
        self.Ie += -Ict - Icc / self.Bf + self.gmin * self.Vbe

Command syntax

The syntax for defining an NPN transistor in a PyAMS simulation:

# Import the model
from pyams.models import NPN

# Qname: is the name of the NPN transistor instance
# c, b, e: The connection points in the circuit
Qname = NPN(c, b, e)
