Van der Pol Oscillator

Overview

The Van der Pol oscillator is a non-conservative oscillator with non-linear damping. It is commonly used in physics, electronics, and biological systems to describe self-sustained oscillations. The oscillator follows the second-order differential equation:

\[\frac{d^2x}{dt^2} - \mu (1 - x^2) \frac{dx}{dt} + x = 0\]

In the context of an electrical circuit, the equation takes the form:

\[C \frac{d^2 v_{out}}{dt^2} + \frac{1}{R} \frac{d v_{out}}{dt} + \frac{1}{L} v_{out} = 0\]

where the nonlinear resistance is defined as:

\[R = \frac{1}{\mu(v_{out}^2 - 1)}\]

Circuit Diagram

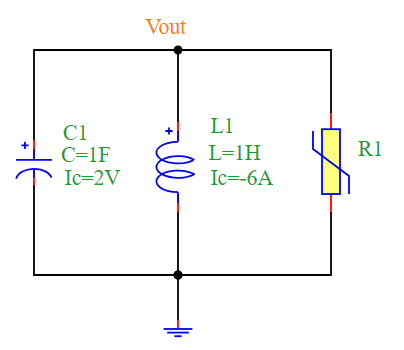

The following circuit diagram represents the Van der Pol Oscillator:

Van der Pol Oscillator Circuit

Simulation Output

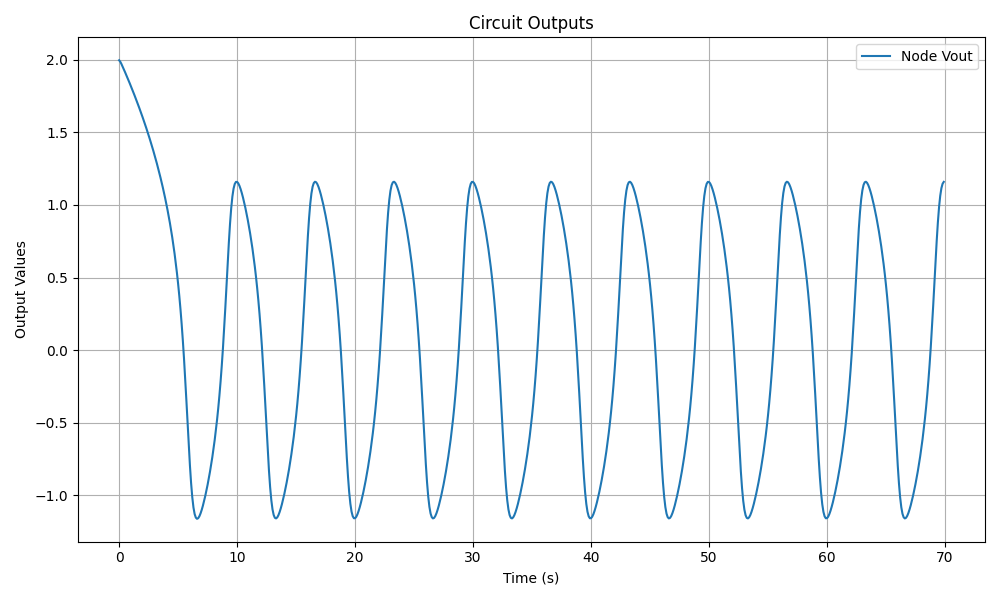

The output waveform of the Van der Pol Oscillator exhibits self-sustained oscillations, as shown in the figure below:

Van der Pol Oscillator Output Waveform

Simulation and Results for different values of \(\mu\)

Below is the Python code used to simulate the Van der Pol oscillator with different values of \(\mu\).

from pyams.lib import circuit
from pyams.models import CapacitorIc, InductorIc

R1 = NonlinearResistance("Vout","0")
C1 = CapacitorIc("Vout","0")
L1 = InductorIc("Vout","0")

C1.setParams("C=1F Ic=2V")
L1.setParams("Ic=-6A L=1H")

circuit = circuit()
circuit.addElements({'R1':R1,'C1':C1,'L1':L1})
circuit.setOutPuts("Vout", C1.I)

circuit.analysis(mode="tran", start=10, stop=18, step=0.01)

import matplotlib.pyplot as plt
plt.figure(figsize=(10, 6))

for µ in [0.08, 0.1, 0.5, 0.8, 1.2, 1.6, 1.8, 2.2]:
    print(f"\nCurrent value of µ: {µ}")
    R1.µ += µ
    circuit.run()
    x, dx = circuit.getOutPuts()
    label = rf"$\frac{{dx}}{{dt}}$ for µ={µ}"
    plt.plot(x, dx, label=label)

plt.xlabel("x = Vout")
plt.ylabel(r"$\frac{dx}{dt}(x) = C_1 \cdot I$")
plt.title("Van der Pol Oscillator Phase Space")
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()

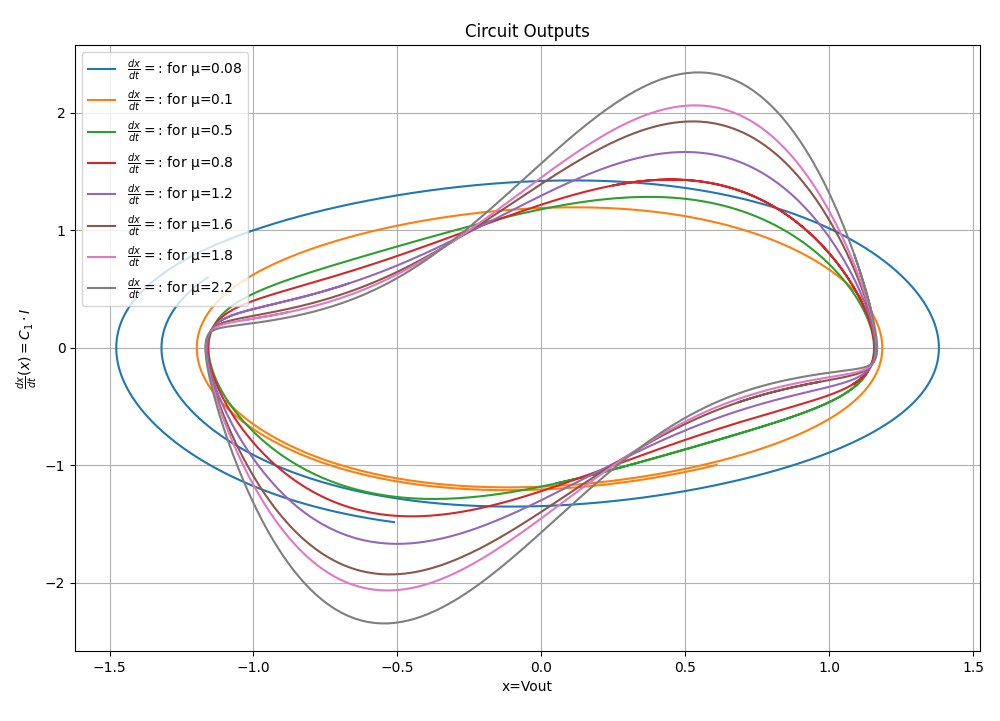

Results

Van der Pol Oscillator Output

Conclusion

The Van der Pol Oscillator demonstrates a non-linear damping effect, causing the amplitude of oscillations to stabilize over time. This circuit is widely used to model real-world oscillatory behavior in electronic and biological systems.
