Trapezoid Voltage

Symbol

Information

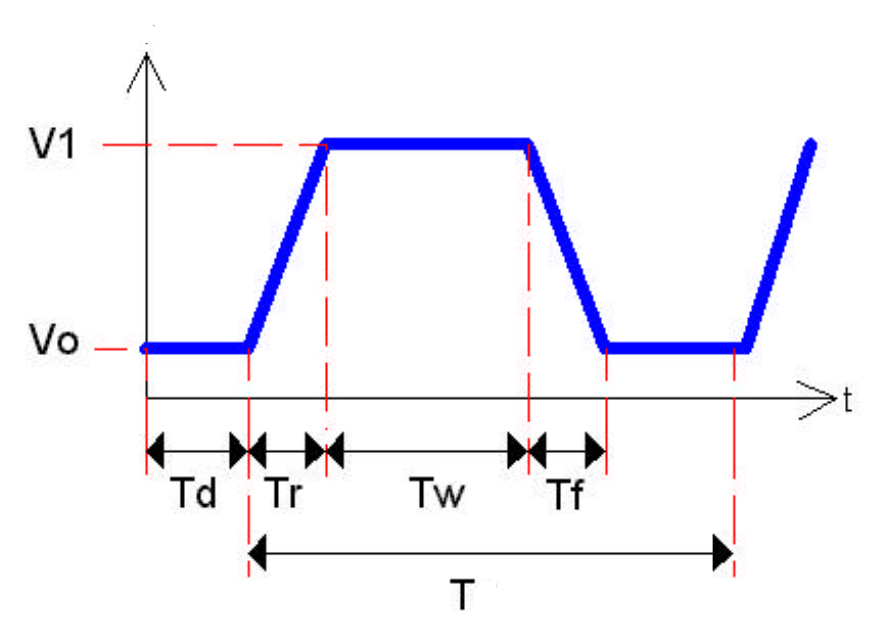

A Trapezoidal Wave Voltage Source generates a voltage signal with a linear rise and fall, forming a trapezoidal waveform.

\[\begin{split}V(t) = \begin{cases} V_0 + V_{off}, & t \leq T_d \\ \frac{(V_1 - V_0)}{T_r} \cdot t + V_0 + V_{off}, & 0 \leq t \leq T_r \\ V_1 + V_{off}, & T_r \leq t \leq T_r + T_w \\ \frac{(V_0 - V_1)}{T_f} \cdot (t - T_r - T_w) + V_1 + V_{off}, & T_r + T_w \leq t \leq T_r + T_w + T_f \\ V_0 + V_{off}, & t > T_r + T_w + T_f \end{cases}\end{split}\]

Where:

• \(V_0\): Initial voltage

• \(V_1\): Peak voltage

• \(T_d\): Initial delay time

• \(T_r\): Rise time

• \(T_w\): Pulse width (high duration)

• \(T_f\): Fall time

• \(T\): Total period of the waveform

• \(V_{off}\): Offset voltage

Ports

• p: Positive terminal

• n: Negative terminal

Model

The TrapezoidVoltage model generates a trapezoidal voltage signal.

This model is useful for PWM circuits, ramp voltage sources, and transient analysis.

Attributes:

• V (signal): Output voltage between terminals (p, n).

• V0 (param): Initial voltage, default is 1 V.

• V1 (param): Peak voltage, default is 1 V.

• Td (param): Initial delay time, default is 0 sec.

• Tr (param): Rise time, default is 0 sec.

• Tw (param): Pulse-width (high duration), default is 0.05 sec.

• Tf (param): Fall time, default is 0 sec.

• T (param): Total period of the waveform, default is 0.1 sec.

• Voff (param): Offset voltage, default is 0 V.

Methods:

analog(): Implements the trapezoidal voltage equation.

from pyams.lib import model, signal, param, time
from pyams.lib import voltage


class TrapezoidVoltage(model):
  """
  This class models a Trapezoidal Waveform Voltage Source.
  """

  def __init__(self, p, n):
      # Signal declaration
      self.V = signal('out', voltage, p, n)

      # Parameter declarations
      self.V0 = param(1.0, 'V', 'Initial voltage')
      self.V1 = param(1.0, 'V', 'Peak voltage')
      self.Td = param(0, 'Sec', 'Initial delay time')
      self.Tr = param(0, 'Sec', 'Rise time')
      self.Tw = param(0.05, 'Sec', 'Pulse-width')
      self.Tf = param(0, 'Sec', 'Fall time')
      self.T = param(0.1, 'Sec', 'Total period of the waveform')
      self.Voff = param(0.0, 'V', 'Offset voltage')

  def analog(self):
      """Defines the trapezoidal waveform equation for voltage output."""
      t = time  # Get current simulation time

      # Before initial delay
      if t <= self.Td:
          self.V += self.V0 + self.Voff
          return

      # Time within the current cycle
      cycle_time = (t - self.Td) % self.T

      # Rising edge: 0 → Tr
      if cycle_time <= self.Tr:
          slope = (self.V1 - self.V0) / self.Tr
          self.V += slope * cycle_time + self.V0 + self.Voff

      # High state: Tr → (Tr + Tw)
      elif cycle_time <= (self.Tr + self.Tw):
          self.V += self.V1 + self.Voff

      # Falling edge: (Tr + Tw) → (Tr + Tw + Tf)
      elif cycle_time <= (self.Tr + self.Tw + self.Tf):
          slope = (self.V0 - self.V1) / self.Tf
          self.V += slope * (cycle_time - self.Tr - self.Tw) + self.V1 + self.Voff

      # Low state: After (Tr + Tw + Tf)
      else:
          self.V += self.V0 + self.Voff

Command syntax

The syntax for defining a trapezoidal voltage source in a PyAMS simulation:

# Import the model
from pyams.models import TrapezoidVoltage

# Vname: is the name of the voltage source instance
# a, b: The connection points in the circuit
Vname = TrapezoidVoltage(a, b)
